MSP430F1222IRHBR
16 ultra low power microcontroller, with 4kB flash, 256B RAM, 10 ADC and USART, QFN (RHB) package | 32pin
-
-
MSP430F1222IRHBR
The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 ¦Ì s.
The MSP430x11x2 and MSP430x12x2 series are ultralow-power mixed signal microcontrollers with a built-in 16-bit timer, 10-bit A/D converter with integrated reference and data transfer controller (DTC) and fourteen or twenty-two I/O pins.
The MSP430x11x2 and MSP430x12x2 series are ultralow-power mixed signal microcontrollers with a built-in 16-bit timer, 10-bit A/D converter with integrated reference and data transfer controller (DTC) and fourteen or twenty-two I/O pins.
-

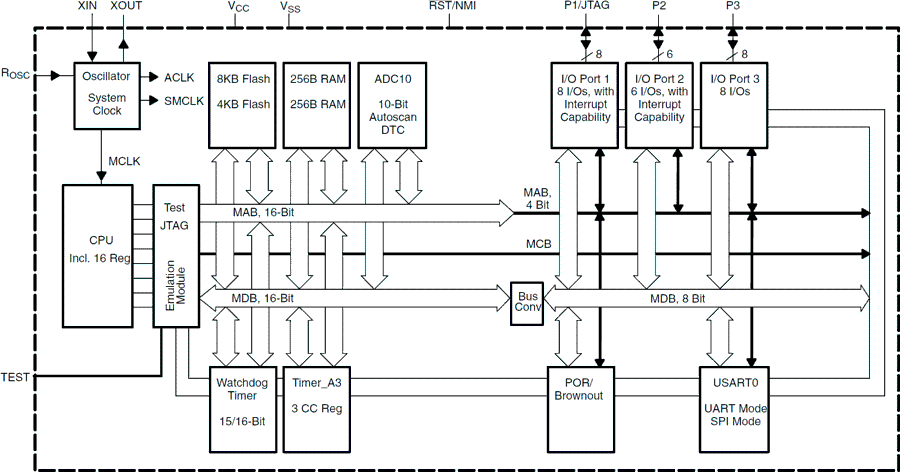

MSP430F1222IRHBR function block diagram of the
-
The characteristics of
MSP430F1222IRHBR
Low Supply Voltage Range 1.8 V - 3.6 V
Ultralow-Power Consumption:
Active Mode: 200 A at 1 MHz, 2.2 V
Standby Mode: 0.7 ¦Ì A
Wake-Up From Standby Mode in less than 6 ¦Ì s
Basic Clock Module Configurations:
Various Internal Resistors
Single External Resistor
32-kHz Crystal
High Frequency Crystal
Resonator
External Clock Source
16-Bit Timer_A With Three Capture/Compare Registers
10-Bit, 200-ksps A/D Converter With Internal Reference, Sample-and-Hold, Autoscan, and Data Transfer Controller
Serial Communication Interface (USART) With Software-Selectable Asynchronous UART or Synchronous SPI (MSP430x12x2 Only) and
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
Supply Voltage Brownout Protection
