MSP430F123IPWR
16 ultra low power microcontroller, with 8kB flash, 256B RAM, USART and comparator, TSSOP (PW) package | 28pin
-
-
MSP430F123IPWR
The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 ¦Ì s
The MSP430F12x series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer and twenty-two I/O pins.The MSP430F12x series also has a built-in communication capability using asynchronous (UART) and synchronous (SPI) protocols in addition to a versatile analog comparator.
-

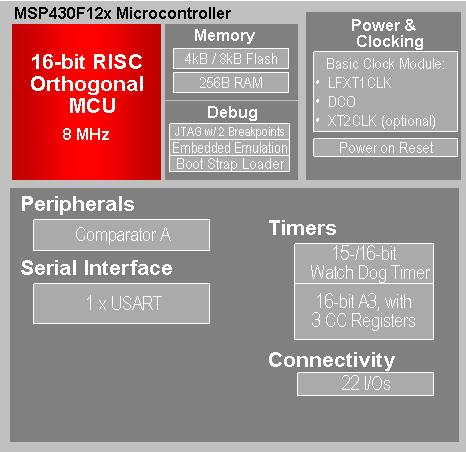

MSP430F123IPWR function block diagram of the
-
The characteristics of
MSP430F123IPWR
Low Supply Voltage Range 1.8 V to 3.6 V
Ultralow-Power Consumption:
Active Mode: 200 A at 1 MHz, 2.2 V
Standby Mode: 0.7 ¦Ì A
Wake-Up From Standby Mode in less than 6 ¦Ì s
Basic Clock Module Configurations:
Various Internal Resistors
Single External Resistor
32 kHz Crystal
High Frequency Crystal
Resonator
External Clock Source
16-Bit Timer_A With Three Capture/Compare Registers
On-Chip Comparator for Analog Signal Compare Function or Slope A/D Conversion
Serial Communication Interface (USART0) Software-Selects Asynchronous UART or Synchronous SPI
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
Family Members Include:
MSP430F122: 4KB + 256B Flash Memory 256B RAM
MSP430F123: 8KB + 256B Flash Memory 256B RAM
