MSP430F2111IPWR
16 ultra low power microcontroller, 2kB flash, 128B RAM, comparator, TSSOP (PW) package | 20pin
-
-
MSP430F2111IPWR
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 ¦Ì s.
The MSP430x21x1 series is an ultra-low-power mixed signal microcontroller with a built-in 16-bit timer, versatile analog comparator, and sixteen I/O pins.
Typical applications include sensor systems that capture analog signals, convert themto digital values, and then process the data for display or for transmission to a host system.
-

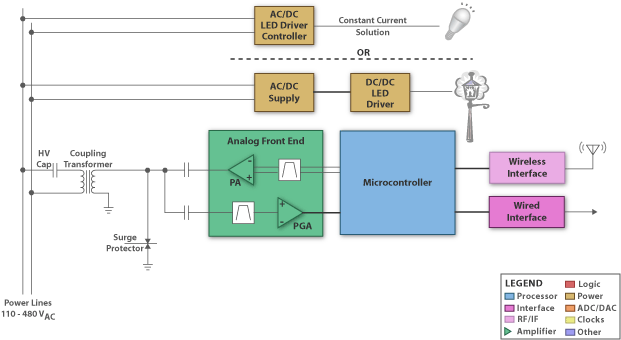

MSP430F2111IPWR application products - general lighting
-
The characteristics of
MSP430F2111IPWR
Low Supply Voltage Range: 1.8 V to 3.6 V
Ultra-Low Power Consumption
Active Mode: 250 A at 1 MHz, 2.2 V
Standby Mode: 0.7 ¦Ì A
Basic Clock Module Configurations
Internal Frequencies up to 16 MHz With Four Calibrated
Frequencies to ¡À 1%
32-kHz Crystal
High-Frequency Crystal up to 16 MHz
Resonator
External Digital Clock Source
16-Bit Timer_A With Three Capture/Compare Registers
On-Chip Comparator for Analog Signal Compare Function or Slope
Analog-to-Digital (A/D) Conversion
Brownout Detector
Serial Onboard Programming, No External Programming Voltage Needed,
Programmable Code Protection by Security Fuse
Bootstrap Loader
On Chip Emulation Module
Family Members:
- MSP430F2101IDWR-16 ultra low power microcontroller, 1kB flash, 128B RAM, comparator, SOIC (DW) package | 20pin
- MSP430F2121IDWR-16 ultra low power microcontroller, 4kB flash, 256B RAM, comparator, SOIC (DW) package | 20pin
