MSP430F2252IRHAR
Ultra low power 16 - bit 16kB flash and 512B RAM microcontroller, VQFN (RHA) package | 40pin
-
-
MSP430F2252IRHAR
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 ¦Ì s.
The MSP430F22xx series is an ultra-low-power mixed signal microcontroller with two built-in 16-bit timers, a universal serial communication interface, 10-bit A/D converter with integrated reference and data transfer controller (DTC), two general-purpose operational amplifiers in the MSP430F22x4 devices, and 32 I/O pins.
-

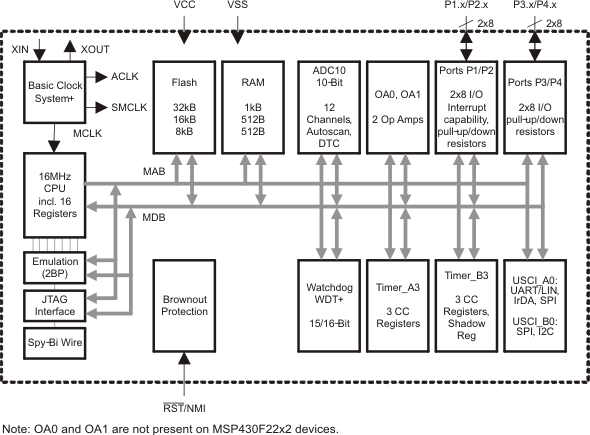

MSP430F2252IRHAR function block diagram of the
-

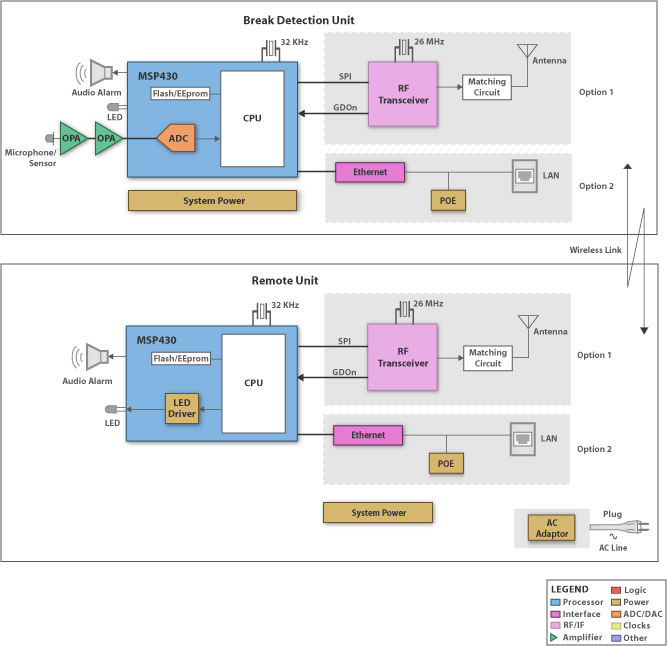

MSP430F2252IRHAR application of glass breakage detector
-
The characteristics of
MSP430F2252IRHAR
Low Supply Voltage Range: 1.8 V to 3.6 V
Ultra-Low Power Consumption
Active Mode: 270 A at 1 MHz, 2.2 V
Standby Mode: 0.7 ¦Ì A
Basic Clock Module Configurations
Internal Frequencies up to 16 MHz With
Four Calibrated Frequencies to ¡À 1%
Internal Very-Low-Power Low-Frequency Oscillator
32-kHz Crystal
High-Frequency (HF) Crystal up to 16 MHz
Resonator
External Digital Clock Source
External Resistor
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_B With Three Capture/Compare Registers
Universal Serial Communication Interface
Enhanced UART Supporting
Auto-Baudrate Detection (LIN)
IrDA Encoder and Decoder
