MSP430F2272IDAR
Ultra low power 16 - bit 32kB flash and 1K RAM microcontroller, TSSOP (DA) package | 38PIN
-
-
MSP430F2272IDAR parameter
type:
RoHS: is
bus width: 16
The instruction set architecture:
series: MSP430
The programmable input / output port: 32
program storage type: FLASH
program storage capacity: 32KB
EEPROM:
The data RAM size: 1KB
The max:16MHz clock frequency
interface type: I2C/SPI/UART/LIN/IrDA/USCI
timer number: 2 x 16 (3CCR) / watchdog / interval
In ADC:12x10
The on-chip DAC:
The voltage: 1.8V~3.6V
working temperature: -40 ¡æ ~85 ¡æ
package: TSSOP-38
Frequency (MHz):16
Flash (KB):32
GPIO:32
SRAM (B):1024
Timers - 16-bit:2
Watchdog: Yes
Brown Out Reset: Yes
USCI_A (UART/LIN/IrDA/SPI):1
USCI_B (I2C & SPI):1
USI:
ADC: 10-bit SAR
ADC Channels:12
Pin/Package: 38TSSOP, 40VQFN, 49DSBGA
Approx. Price (US$): 2 | 1KU
Rating: Catalog
-
MSP430F2272IDAR datasheet technical specifications
MSP430F2272IDAR datasheet technical specifications download
-

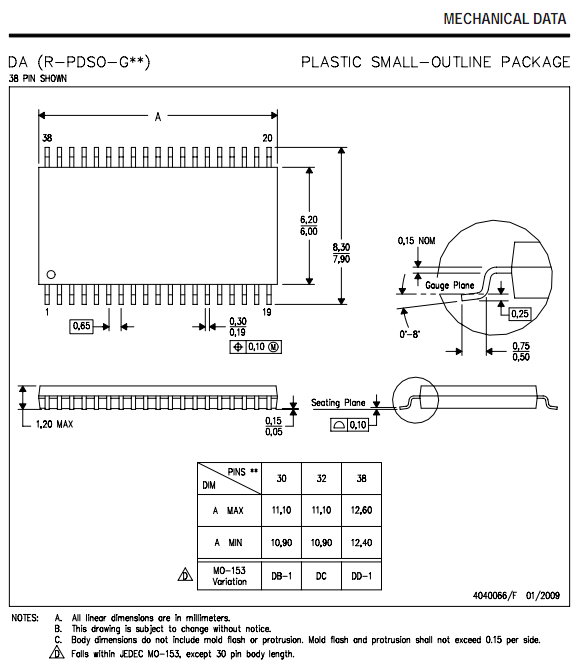

MSP430F2272IDAR package
Package: TSSOP (DA) | 38pin
.Png "MSP430F2272IDAR package diagram")
