MSP430F412IPMR
16 ultra low power microcontroller, with 4kB flash, 256B RAM, a comparator and a 96 segment LCD, LQFP package (PM) | 64pin
-
-
MSP430F412IPMR
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 ¦Ì s.
The MSP430x41x series are microcontroller configurations with one or two built-in 16-bit timers, a comparator, 96 LCD segment drive capability, and 48 I/O pins.
-

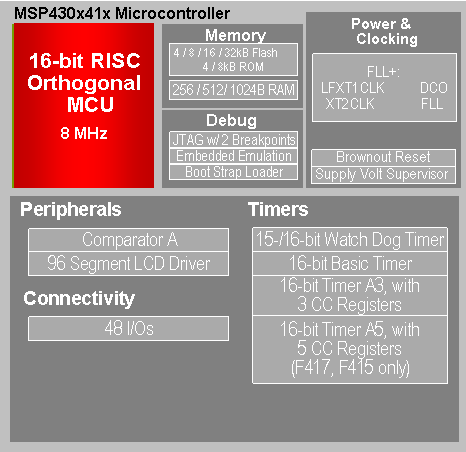

MSP430F412IPMR function block diagram of the
-

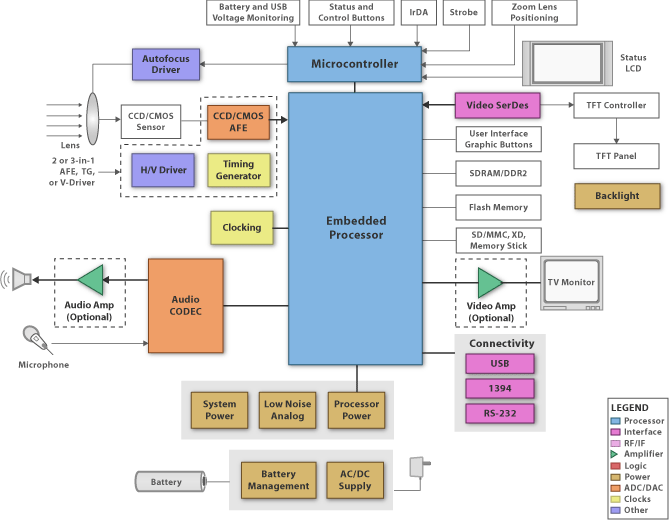

MSP430F412IPMR application - digital camera
-
The characteristics of
MSP430F412IPMR
Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultra-Low Power Consumption
Active Mode: 270 A at 1 MHz, 2.2 V
Standby Mode (VLO): 0.3 ¦Ì A
Basic Clock Module Configurations:
Internal Frequencies up to 16 MHz
Internal Very Low-Power LF Oscillator
32-kHz Crystal
Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ¡À 1%
Resonator
External Digital Clock Source
External Resistor
12-Bit Analog-to-Digital (A/D) Converter With Internal Reference, Sample-and-Hold,
And Autoscan Feature
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_B With Seven Capture/Compare With Shadow Registers
Four Universal Serial Communication Interfaces (USCI)
USCI_A0 and USCI_A1
