MSP430F4132IPMR
16 ultra low power MCU, 16KB, RAM, 512B flash memory has 10 bits ADC, USCI, COMP, 56 I/O and LCD drives, LQFP package (PM) | 64pin
-
-
MSP430F4132IPMR
The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portablemeasurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generator that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 ¦Ì s.
TheMSP430F41x2 is a microcontroller configurationwith two 16-bit timers, a basic timerwith a real-time clock, a 10-bit A/D converter, a versatile analog comparator, two universal serial communication interfaces, up to 48 I/O pins, and a liquid crystal display driver.
-

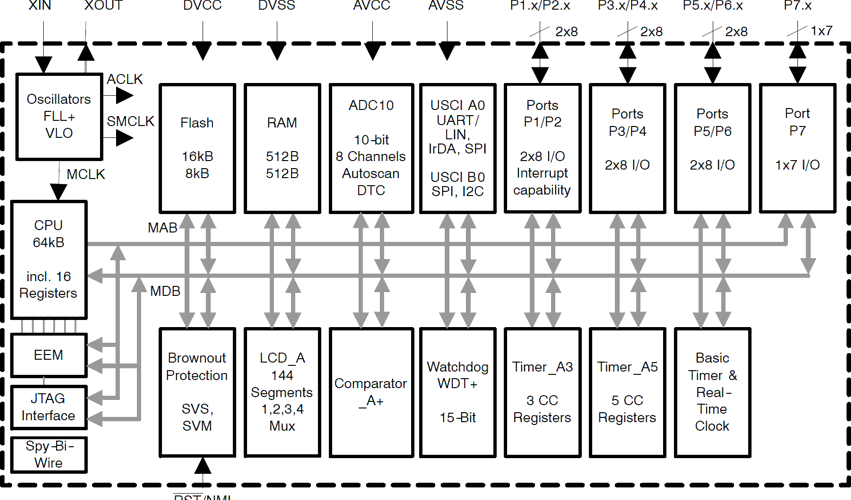

MSP430F4132IPMR function block diagram of the
-
The characteristics of
MSP430F4132IPMR
Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultralow Power Consumption
Active Mode: 220 A at 1 MHz, 2.2 V
Standby Mode: 0.9 ¦Ì A
Wake-Up From Standby Mode in Less Than 6 ¦Ì s
16-Bit RISC Architecture, 125-ns Instruction Cycle Time
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_A With Five Capture/Compare Registers
Two Universal Serial Communication Interfaces (USCIs)
USCI_A0
Enhanced UART Supporting Auto-Baudrate Detection
IrDA Encoder and Decoder
Synchronous SPI
USCI_B0
I2C
Synchronous SPI
Supply Voltage Supervisor/Monitor With Programmable Level Detection
Integrated LCD Driver With Contrast Control for Up to 144 Segments
Basic Timer With Real Time Clock Feature
Brownout detector
