MSP430F415IPMR
16 ultra low power microcontroller, with 16kB flash, 512B RAM, a comparator and a 96 segment LCD, LQFP package (PM) | 64pin
-
-
MSP430F415IPMR
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 ¦Ì s
The MSP430x41x series are microcontroller configurations with one or two built-in 16-bit timers, a comparator, 96 LCD segment drive capability, and 48 I/O pins.
-

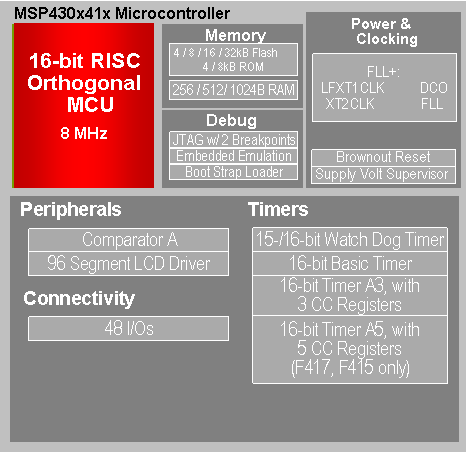

MSP430F415IPMR function block diagram of the
-

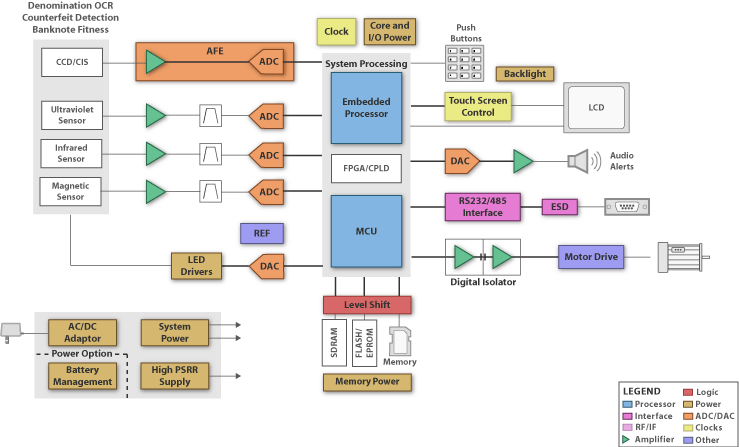

MSP430F415IPMR application - counting machine
-
The characteristics of
MSP430F415IPMR
Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultralow-Power Consumption:
Active Mode: 200 A at 1 MHz, 2.2 V
Standby Mode: 0.7 ¦Ì A
Wake-Up From Standby Mode in Less Than 6 ¦Ì s
16-Bit RISC Architecture, 125-ns Instruction Cycle Time
16-Bit Timer_A With Three or Five Capture/Compare Registers
Integrated LCD Driver for 96 Segments
On-Chip Comparator
Brownout Detector
Supply Voltage Supervisor/Monitor - Programmable Level Detection on MSP430F415/417 Devices Only
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
Bootstrap Loader in Flash Devices
Family Members Include:
MSP430C412: 4KB ROM, 256B RAM
MSP430C413: 8KB ROM, 256B RAM
MSP430F412: 4KB + 256B Flash, 256B RAM
