MSP430F425AIPMR
16 ultra low power microcontroller, with 16KB flash, 512B RAM, ¦² - ¦¤ ADC, 128 LCD, LQFP package (PM) | 64p
-
-
MSP430F425AIPMR
The Texas InstrumentsMSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 ¦Ì s
The MSP430F42xA series are microcontroller configurations with three independent 16-bit sigma-delta A/D converters, each with an integrated differential programmable gain amplifier input stage.
-

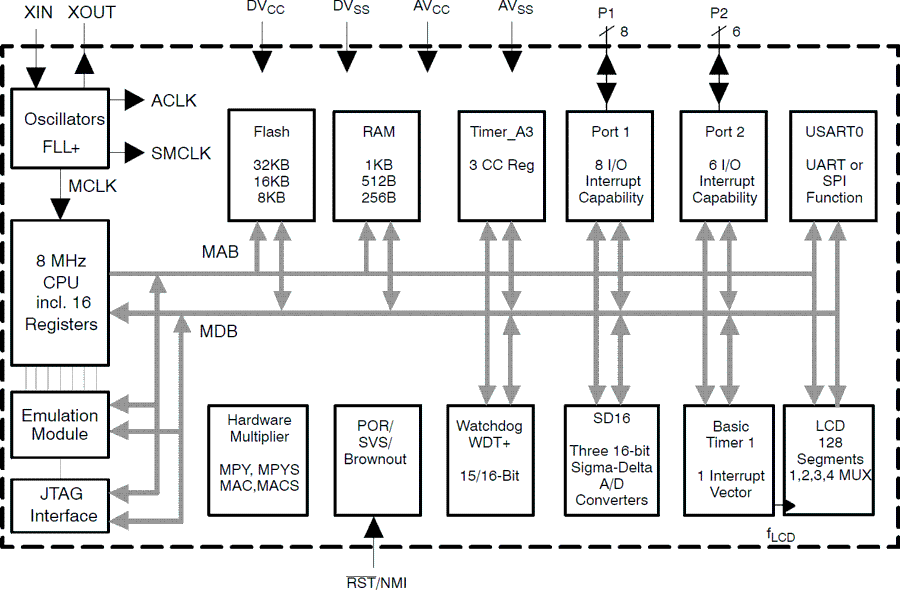

MSP430F425AIPMR function block diagram of the
-
The characteristics of
MSP430F425AIPMR
Ultra-Low Power Consumption:
Active Mode: 400 A at 1 MHz, 3 V
Standby Mode: 1.6 ¦Ì A
Wake-Up From Standby Mode in Less Than 6 ¦Ì s
16-Bit RISC Architecture, 125-ns Instruction Cycle Time
Three Independent 16-bit Sigma-Delta A/D Converters With Differential PGA Inputs
16-Bit Timer_A With Three Capture/Compare Registers
Integrated LCD Driver for 128 Segments
Serial Communication Interface (USART), Asynchronous UART, or Synchronous SPI Selectable by Software
Brownout Detector
Supply Voltage Supervisor/Monitor With Programmable Level Detection
Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
Bootstrap Loader in Flash Devices
Family Members Include:
MSP430F423A:
8KB + 256B Flash Memory, 256B RAM
MSP430F425A:
16KB + 256B Flash Memory, 512B RAM
MSP430F427A:
32KB + 256B Flash Memory, 1KB RAM
