MSP430F449IPZR
With 60kB flash, 2048B RAM, 12 ADC, 2 USART, HW multiplier and 160 LCD 16 ultra low power microprocessor, LQFP (PZ) package | 100pin
-
-
MSP430F449IPZR
The Texas Instruments MSP430 family of ultralow power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The devices feature a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 ¦Ì s.
The MSP430x43x (1) and the MSP430x44x (1) series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not implemented on the MSP430F43x1 and MSP430F44x1 devices), one or two universal serial synchronous/asynchronous communication interfaces (USART), 48 I/O pins, and a liquid crystal driver (LCD) with up to 160 segments.
-

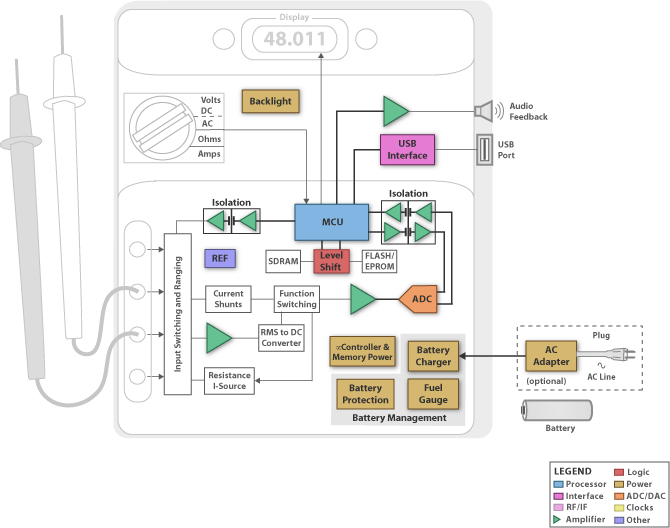

MSP430F449IPZR application products - handheld digital multimeter
-
The characteristics of
MSP430F449IPZR
Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultralow-Power Consumption:
Active Mode: 280 A at 1 MHz, 2.2 V
Standby Mode: 1.1 ¦Ì A
Wake-Up From Standby Mode in Less Than 6 ¦Ì s
12-Bit A/D Converter With Internal Reference, Sample-and-Hold and
Autoscan Feature
16-Bit Timer_B With Three (1) or Seven (2) Capture/Compare-With-Shadow Registers
16-Bit Timer_A With Three Capture/Compare Registers
On-Chip Comparator
Serial Communication Interface (USART), Select Asynchronous UART or
Synchronous SPI by Software:
Two USARTs (USART0, USART1) (1)
One USART (USART0) (2)
Brownout Detector
Supply Voltage Supervisor/Monitor With Programmable Level Detection
Serial Onboard Programming, No External Programming Voltage Needed
Programmable Code Protection by Security Fuse
Integrated LCD Driver for up to 160 Segments
Bootstrap Loader
