MSP430G2432IPW20R
MSP430G2x32, MSP430G2x02 mixed signal microcontroller, TSSOP (PW) package | 20pin
-
-
MSP430G2432IPW20R
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 ¦Ì s.
The MSP430G2x32 and MSP430G2x02 series of microcontrollers are ultra-low-power mixed signal microcontrollers with built-in 16-bit timers, and up to 16 I/O touch sense enabled pins and built-in communication capability using the universal serial communication interface.
-

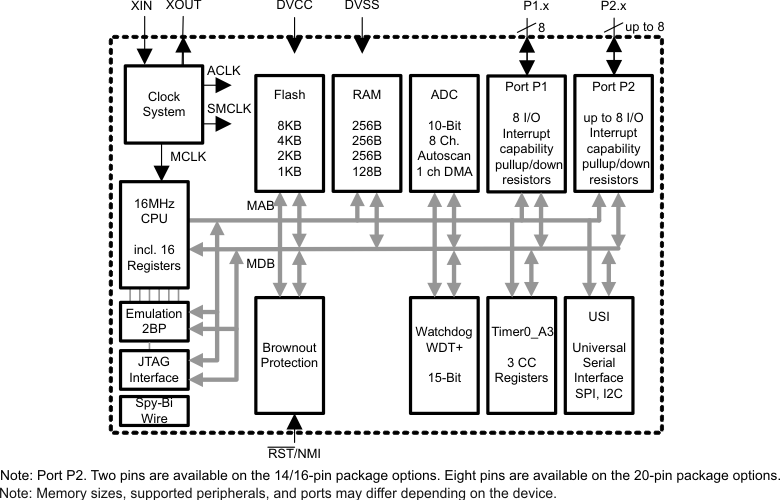

MSP430G2432IPW20R function block diagram of the
-
The characteristics of
MSP430G2432IPW20R
Low Supply Voltage Range: 1.8 V to 3.6 V
Ultra-Low Power Consumption
Active Mode: 220 A at 1 MHz, 2.2 V
Standby Mode: 0.5 ¦Ì A
Ultra-Fast Wake-Up From Standby Mode in Less Than 1 ¦Ì s
Basic Clock Module Configurations
Internal Frequencies up to 16 MHz With Four Calibrated Frequencies
Internal Very-Low-Power Low-Frequency (LF) Oscillator
32-kHz Crystal
External Digital Clock Source
One 16-Bit Timer_A With Three Capture/Compare Registers
Up to 16 Touch-Sense Enabled I/O Pins
Universal Serial Interface (USI) Supporting SPI and I2C
10-Bit 200-ksps Analog-to-Digital (A/D) Converter With Internal
Reference, Sample-and-Hold, and Autoscan (MSP430G2x32 Only) and
Brownout Detector
Serial Onboard Programming, No External Programming Voltage Needed,
Programmable Code Protection by Security Fuse
On-Chip Emulation Logic With Spy-Bi-Wire Interface
