TLV320AIC32IRHBR
Low power stereo has 6 input and 6 output integrated headset / loudspeaker amplifier and the effect of 3D codec, QFN (RHB) package | 32pin
-
-
TLV320AIC32IRHBR
The TLV320AIC32 is a low-power stereo-audio codec with a stereo headphone amplifier, as well as multiple inputs and outputs, programmable in single-ended or fully-differential configurations. Extensive register-based power control is included, enabling stereo 48-kHz DAC playback as low as 14 mW from a 3.3-V analog supply, making it ideal for portable, battery-powered audio and telephony applications.
The record path of the TLV320AIC32 contains integrated microphone bias, digitally-controlled stereo-microphone pre-amp, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. The playback path includes mix/ MUX capability from the stereo DAC and selected inputs, through programmable volume controls, to the various outputs.
-

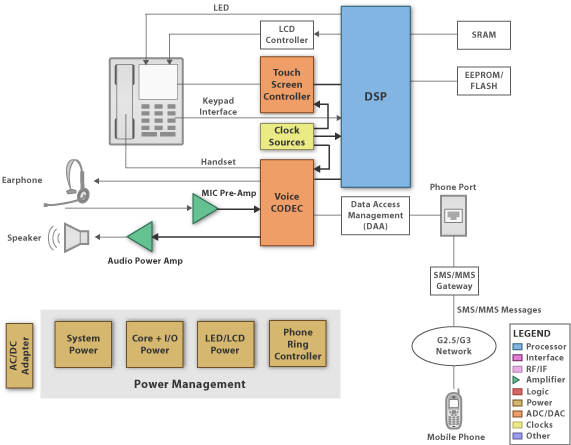

TLV320AIC32IRHBR application SMS/MMS phone
-
The characteristics of
TLV320AIC32IRHBR
Stereo Audio DAC
100 dB A Signal-to-Noise Ratio
16/20/24/32-Bit Data
Supports Rates From 8 kHz to 96 kHz
3D/Bass/Treble/EQ/De-Emphasis Effects
Stereo Audio ADC
92 dB A Signal-to-Noise Ratio
Supports Rates From 8 kHz to 96 kHz
Six Audio Input Pins
Six Stereo Single-Ended Inputs
Six Audio Output Drivers
Stereo 8-, 500 mw/Channel Speaker Drive Capability
Stereo Fully-Differential or Single-Ended Headphone Drivers
Fully Differential Stereo Line Outputs
Low Power: 14-mW Stereo, 48-kHz Playback With 3.3-V Analog Supply
Programmable Input/Output Analog Gains
Automatic Gain Control (AGC) for Record
Programmable Microphone Bias Level
Programmable PLL for Flexible Clock Generation
I2C Control Bus
