TPS61085DGKR
18.5V, 2A, 650kHz/1.2MHz boost DC-DC converter, MSOP has forced PWM mode (DGK) package | 8 pin
-
-
TPS61085DGKR
The TPS61085 is a high frequency, high efficiency DC to DC converter with an integrated 2 A, 0.13 power switch capable of providing an output voltage up to 18.5 V. The selectable frequency of 650 kHz or 1.2 MHz allows the use of small external inductors and capacitors and provides fast transient response. The external compensation allows optimizing the application for specific conditions. A capacitor connected to the soft-start pin minimizes inrush current at startup.
-

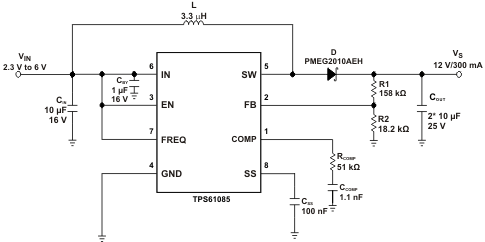

TPS61085DGKR function block diagram of the
-

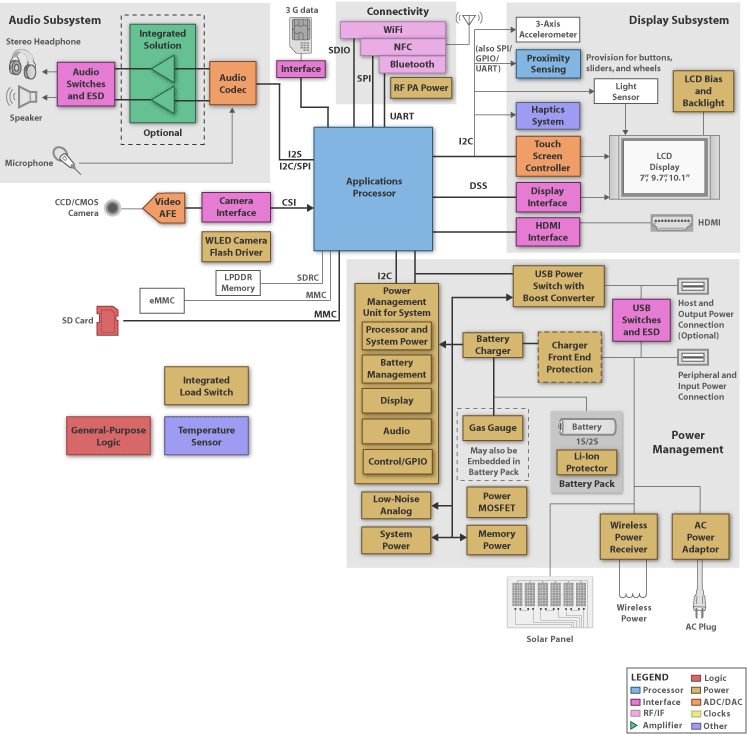

TPS61085DGKR application products - writing board
-
The characteristics of
TPS61085DGKR
2.3 V to 6 V Input Voltage Range
18.5 V Boost Converter With 2 A Switch Current
650 kHz/1.2 MHz Selectable Switching Frequency
Adjustable Soft-Start
Thermal Shutdown
Undervoltage Lockout
8-Pin MSOP Package
8-Pin TSSOP Package
