MSP430F148IPMR
16 位超低功耗微控制器、48kB 闪存、2KB RAM、12 位 ADC、2 USART、硬件乘法器，LQFP (PM)封装 | 64pin
-
-
MSP430F148IPMR说明
The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs.
The MSP430x13x and the MSP430x14x(1) series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not implemented on the MSP430F14x1 devices), one or two universal serial synchronous/asynchronous communication interfaces (USART), and 48 I/O pins.
-

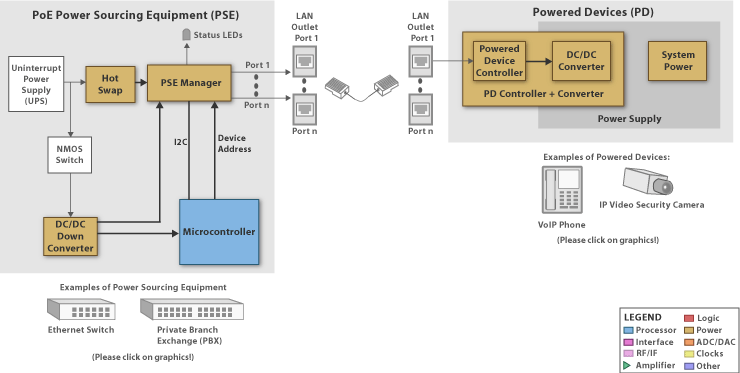

MSP430F148IPMR 相关应用产品:以太网电源 (PoE)
-
MSP430F148IPMR特性
Low Supply Voltage Range 1.8 V – 3.6 V
Ultralow-Power Consumption:
Active Mode: 280 μA at 1 MHz, 2.2V
Standby Mode: 1.6 μA
Off Mode (RAM Retention): 0.1 μA
Five Power-Saving Modes
Wake-Up From Standby Mode in less thatn 6 μs
16-Bit RISC Architecture, 125-ns Instruction Cycle Time
12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature
16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers
16-Bit Timer_A With Three Capture/Compare Registers
On-Chip Comparator
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
Serial Communication Interface (USART), Functions as Asynchronous UART or Synchronous SPI Interface
Two USARTs (USART0, USART1) — MSP430x14x(1) Devices
One USART (USART0) — MSP430x13x Devices
Family Members Include:
MSP430F133:
8KB+256B Flash Memory, 256B RAM
MSP430F135:
16KB+256B Flash Memory, 512B RAM
MSP430F147, MSP430F1471:
32KB+256B Flash Memory, 1KB RAM
