MSP430F2417TPMR
16 位超低功耗微控制器，具有 92KB 闪存、8KB RAM、12 位 ADC、2 个 USCI 和 HW 乘法器，封装LQFP (PM) | 64pin
-
-
MSP430F2417TPMR说明
The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 μs.
The MSP430F261x and MSP430F241x series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter, a comparator, dual 12-bit D/A converters, four universal serial communication interface (USCI) modules, DMA, and up to 64 I/O pins.
-

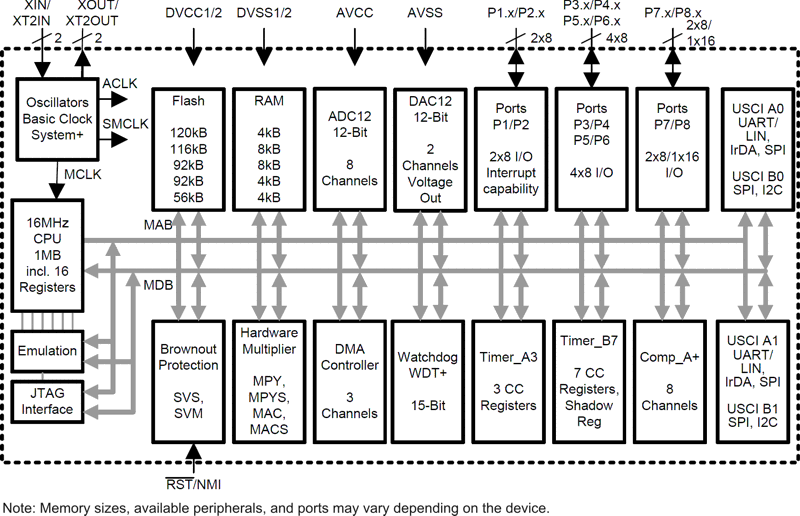

MSP430F2417TPMR 功能方框图
-
MSP430F2417TPMR 相关应用－智能电子式电表：AMR/AMI
-
MSP430F2417TPMR特性
Low Supply Voltage Range 1.8 V to 3.6 V
Ultra-Low Power Consumption
Active Mode: 365 μA at 1 MHz, 2.2 V
Standby Mode (VLO): 0.5 μA
Off Mode (RAM Retention): 0.1 μA
Wake-Up From Standby Mode in Less Than 1 μs
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
Three-Channel Internal DMA
12-Bit Analog-to-Digital (A/D) Converter With Internal Reference,
Sample-and-Hold, and Autoscan Feature
Dual 12-Bit Digital-to-Analog (D/A) Converters With Synchronization
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers
On-Chip Comparator
Four Universal Serial Communication Interfaces (USCIs)
USCI_A0 and USCI_A1: Enhanced UART Supporting Auto-Baudrate Detection,
IrDA Encoder and Decoder, Synchronous SPI
USCI_B0 and USCI_B1: I2C, Synchronous SPI
Supply Voltage Supervisor/Monitor With Programmable Level Detection
Brownout Detector
Bootstrap Loader
Serial Onboard Programming, No External Programming Voltage Needed,
Programmable Code Protection by Security Fuse
