MSP430F4250IDLR
16 位超低功耗 MCU，具有 16kB 闪存、256B RAM、16 位 Σ-Δ A/D、12 位 D/A 和 LCD 驱动器，SSOP (DL)封装 | 48pin
-
-
MSP430F4250IDLR说明
The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs.
The MSP430F42x0 is a microcontroller configuration with a 16-bit timer, a high performance 16-bit sigma-delta A/D converter, 12-bit D/A converter, 32 I/O pins, and a liquid crystal display driver.
-

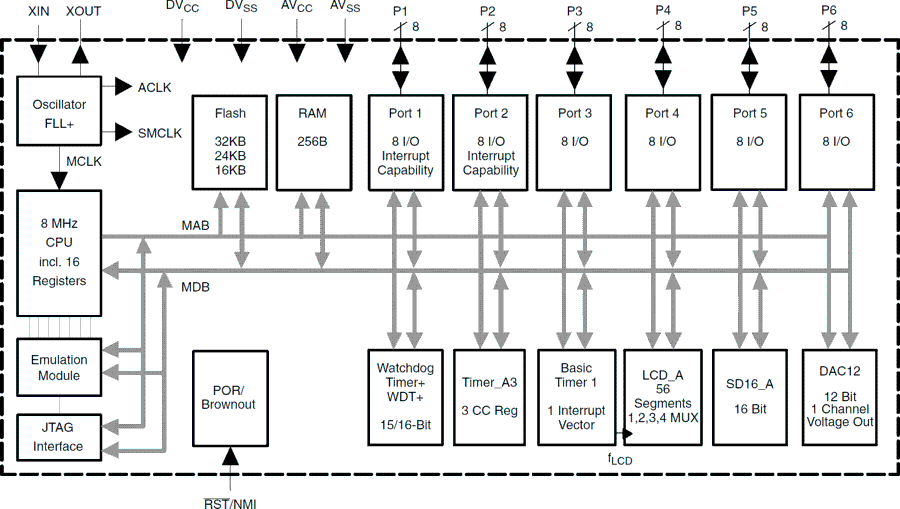

MSP430F4250IDLR 功能方框图
-

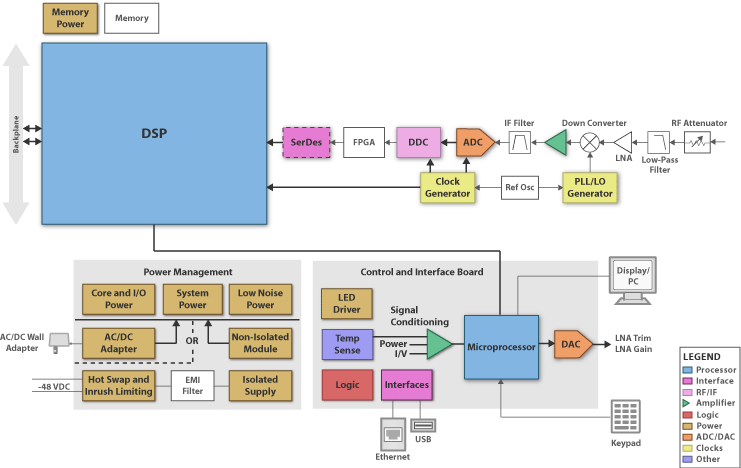

MSP430F4250IDLR 相关应用－矢量信号分析器
-
MSP430F4250IDLR特性
Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultralow-Power Consumption:
Active Mode: 250 μA at 1 MHz, 2.2 V
Standby Mode: 1.1 μA
Off Mode (RAM Retention): 0.1 μA
Five Power Saving Modes
Wake-Up From Standby Mode in less than 6 μs
16-Bit RISC Architecture, 125-ns Instruction Cycle Time
16-Bit Sigma-Delta A/D Converter With Internal Reference and Five Differential Analog Inputs
12-Bit D/A Converter
16-Bit Timer_A With Three Capture/Compare Registers
Brownout Detector
Bootstrap Loader
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
Integrated LCD Driver with Contrast Control for Up to 56 Segments
MSP430x42x0 Family Members Include:
MSP430F4250: 16KB+256B Flash Memory 256B RAM
MSP430F4260: 24KB+256B Flash Memory 256B RAM
MSP430F4270: 32KB+256B Flash Memory 256B RAM
For Complete Module Descriptions, See The MSP430x4xx Family User’s Guide, Literature Number SLAU056
